◪Three phase compensation servo motor technology
◪Wide AC input regulation range 260-430V
◪Selectable output delay function 6s or 180s
◪Digital display for voltage and current
◪Isolated manual bypass switch
◪Full protection such as high/low voltage, overheat, overload, short circuit, phase loss

2 Years Warranty
Free Onsite Service at Bangkok Metropolitan Region *Conditions are as specified by the company
Pick-up and delivery of the repair product for free with express delivery.
Service Center has ISO 9001:2015
​​​​​​​
ZIRCON
The Smart Power Solution ✨

​​​​​​​

Specifications

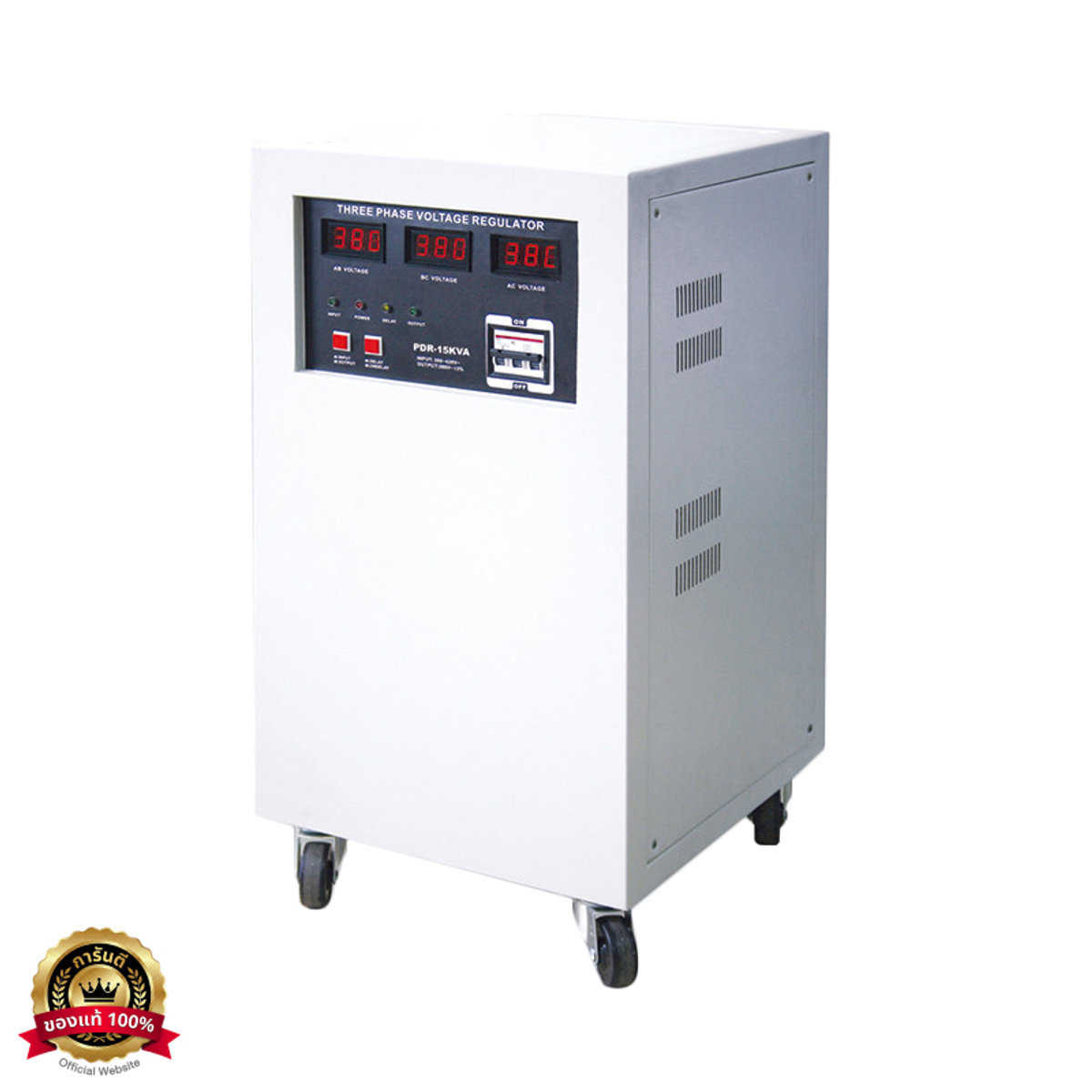

Name		ZC-PDR Series
Model		PDR-15KVA
Rated Power		15000VA/9000W
Technology		Three Phase AVR + Independent Phase Control + Digital CPU Control
Transformer		Servo Motor Type (Mix Copper and Aluminum)
Input	Nominal Voltage	260-430Vac
	Frequency	50/60Hz
Output	Voltage	380Vac, ±3%
	Respond Time	<1s, against 10% variation of input voltage
	Efficiency	>98%
Protection	High Voltage	Output Cutoff by Contactor + Show "H" on Display + Buzzer Beeping
	Low Voltage	Output Cutoff by Contactor + Show "L" on Display + Buzzer Beeping
	Overheat	Output Cutoff by Contactor + Show "CH" on Display + Buzzer Beeping
	Overload	Output Cutoff by Contactor + Show "OL" on Display + Buzzer Beeping
	Phase Failure	Output Cutoff by Contactor + Show "L" on Display + Buzzer Beeping
	Short Circuit	Input Cutoff by Air Breaker
	Output Delay	6s/180s selectable
Safety Standard	Insulation Voltage	2000V/60S
	Insulation Resistance	>5mΩ
	Cooling	Smart Fan (Automatic Startup at 65°C)
	Certification	CE (LVD + EMC)
Operating Environment	Temperature	—5°C~+50°C
	Humidity	10%~90% Non-Condensing
Unit Weight / N.W.		50.0 kgs
Giftbox Size (mm)		435*395*850
Carton Size (Wooden Pallet mm)		490*450*880

​​​​​​​

​​​​​​​​​​​​​​
